HOME | PRODUCTS | LUNAR COMMUNICATIONS
Lunar
Communications
We engineer advanced communication systems to ensure seamless, high-speed connectivity between Earth and lunar missions. Our robust solutions guarantee reliable data transmission for critical deep-space operations.

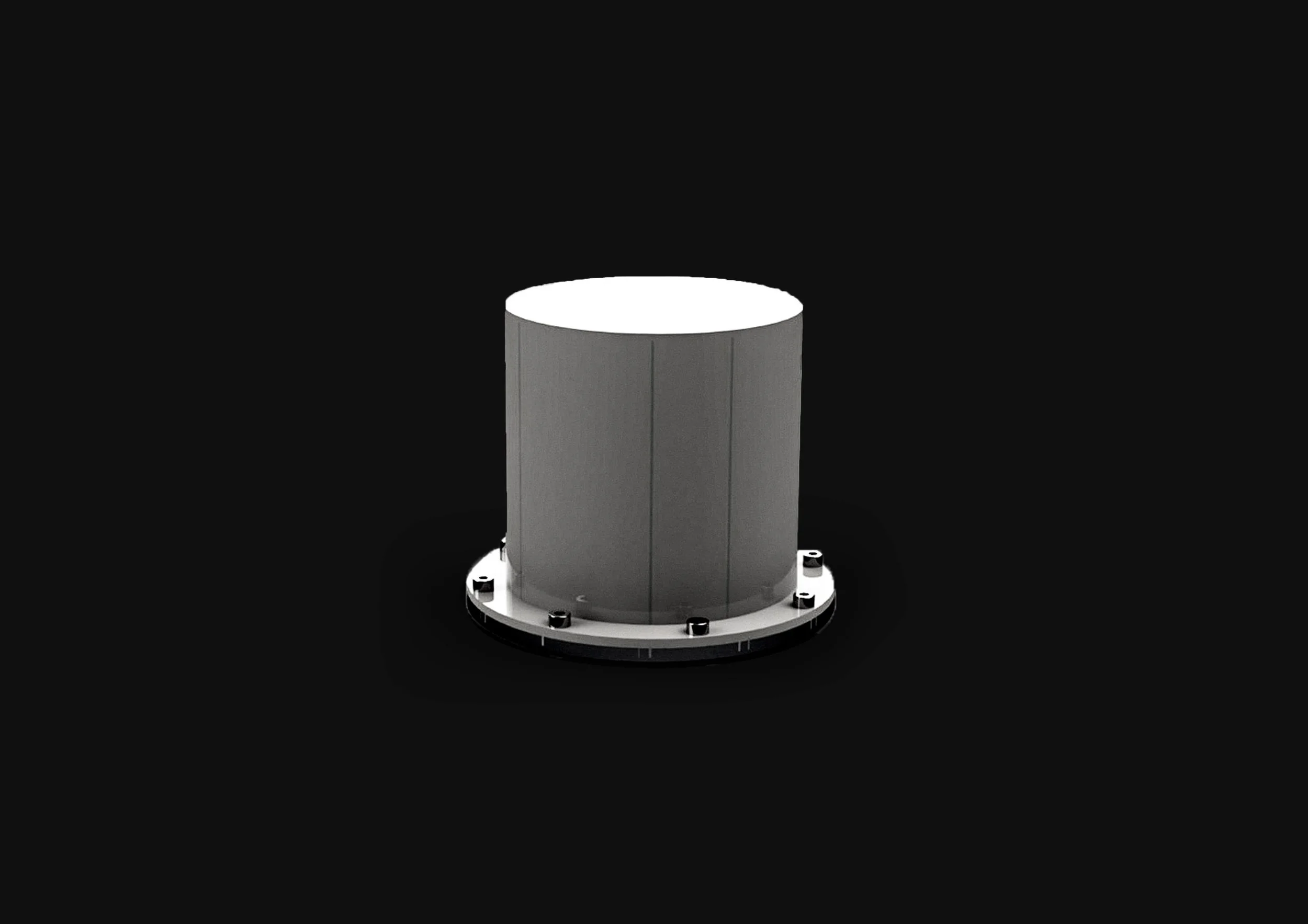

PAGODA ANTENNA

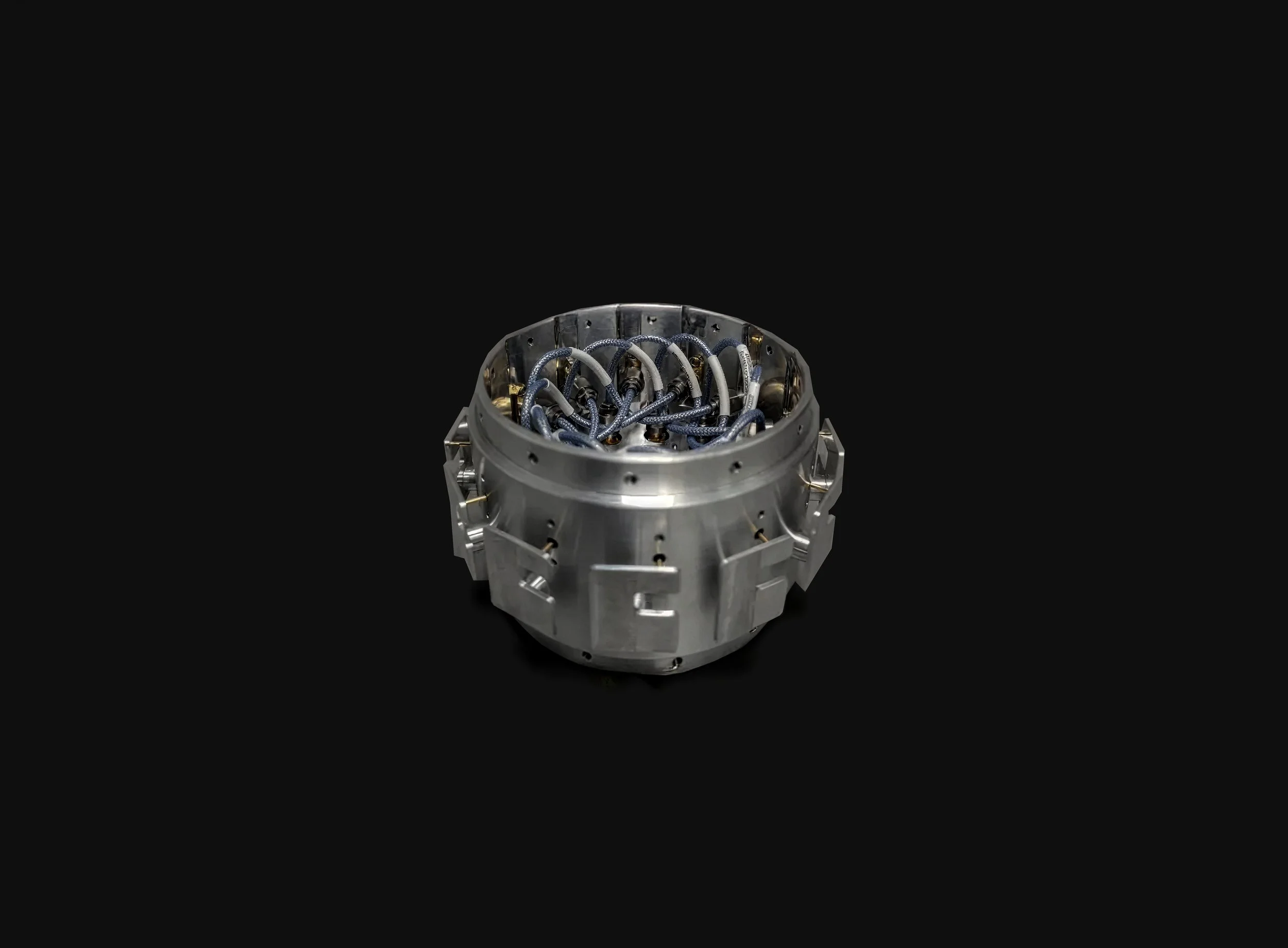

S-BAND OMNI MOON ANTENNA

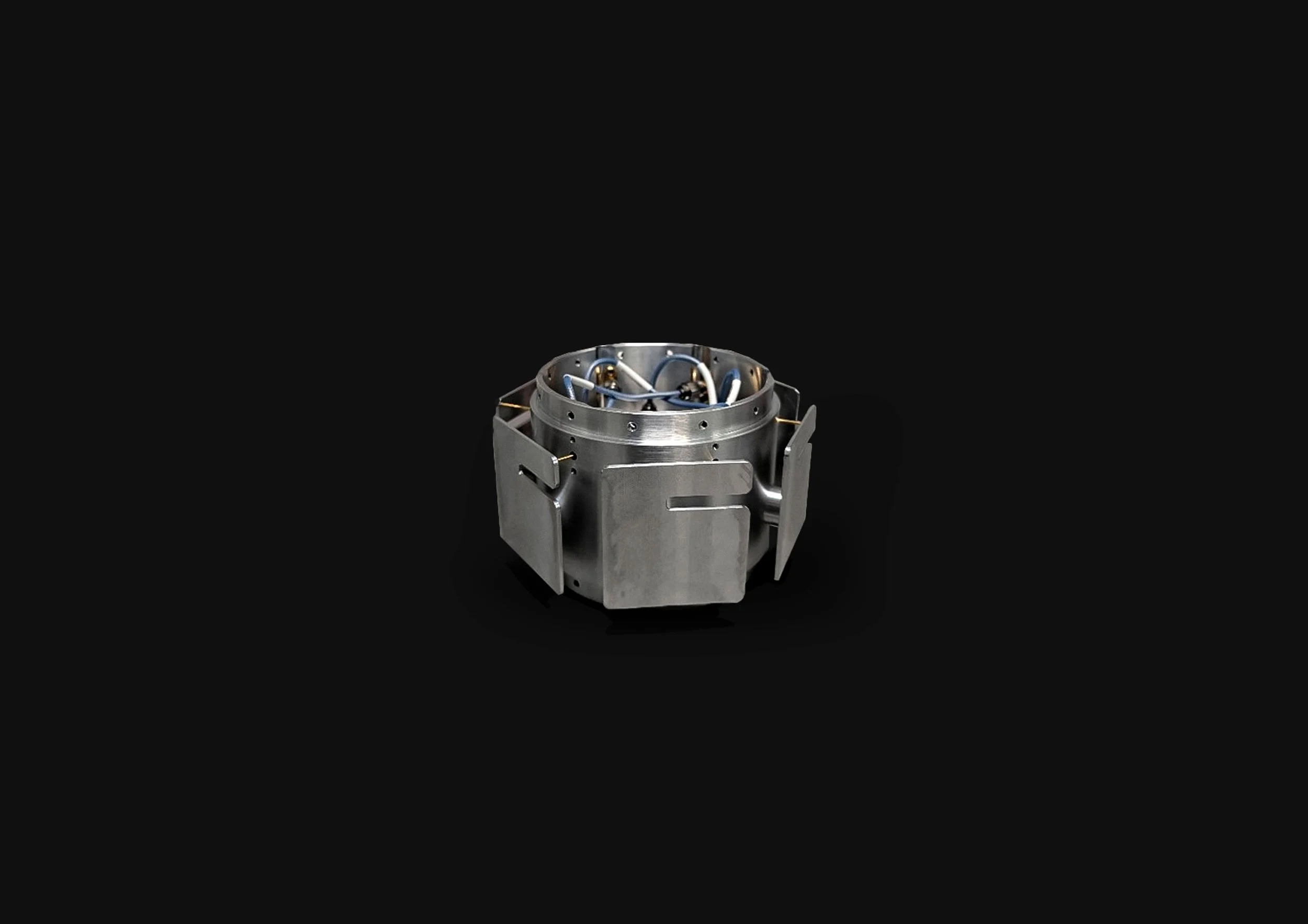

C-BAND OMNI MOON ANTENNA
This new line of all-metal Omnidirectional Patch Array antennas are designed to be integrated into the mast of a rover/asset giving full coverage on the lunar surface with an outstanding coverage and gain performance.
Frequency band: C-Band (5.5 GHz)
Polarization: Omnidirecional
Dimensions: TBC
Applications: Lunar Communications, Tactical Ground Communications
TRL: 6
This new line of all-metal Omnidirectional Patch Array antennas are designed to be integrated into the mast of a rover/asset giving full coverage on the lunar surface with an outstanding coverage and gain performance.
Frequency band: S-Band (2.4 GHz)
Polarization: Omnidirecional
Dimensions: TBC
Applications: Lunar Communications, Tactical Ground Communications
TRL: 6
The ANT-PAGODA-2.4-2.5 is a WiFi Band Circular Polarized PCB Antenna with a matching value better than 13 dB. Interactions between both internal PCB discs and their support structures create a radiation pattern with omnidirectional coverage along the 2.4GHz WiFi frequency band.
Frequency band: 2.4 GHz
Polarization: Linear
Dimensions: 65 x 61⌀
Applications: Lunar Communications, Outdoor WiFi Connectivity
TRL: 6
