We design and develop high-performance feed systems for the aerospace sector, ensuring maximum efficiency, precision, and reliability in critical missions.

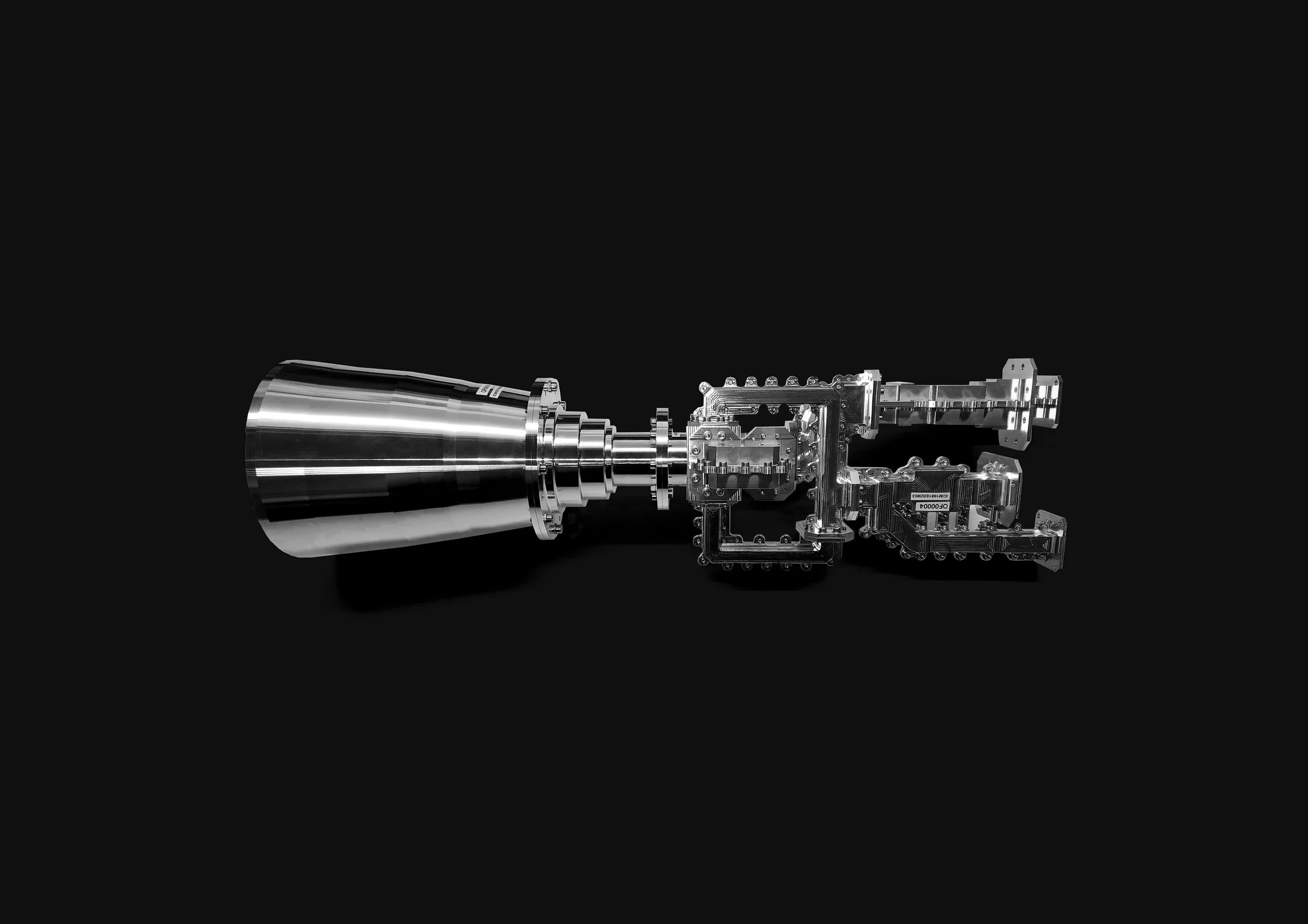

C-X BAND FEED
The EOSOL FEED-RAD-C-X-DLP is designed to feed a refector at C and X band mainly for Earth Observation Radiometry applications. It provides very low spill over and therefore offers low sidelobes level. This feed could also be suitable for telecom applications since it can be customized adjusting the frequency bands and parameters to the desired ones.
Frequency band: C-X band (Dual)
Polarization: Circular
Dimensions: 586 x 146⌀ mm
Applications: Radiometry, Aerospace, Ground Stations
TRL: 7

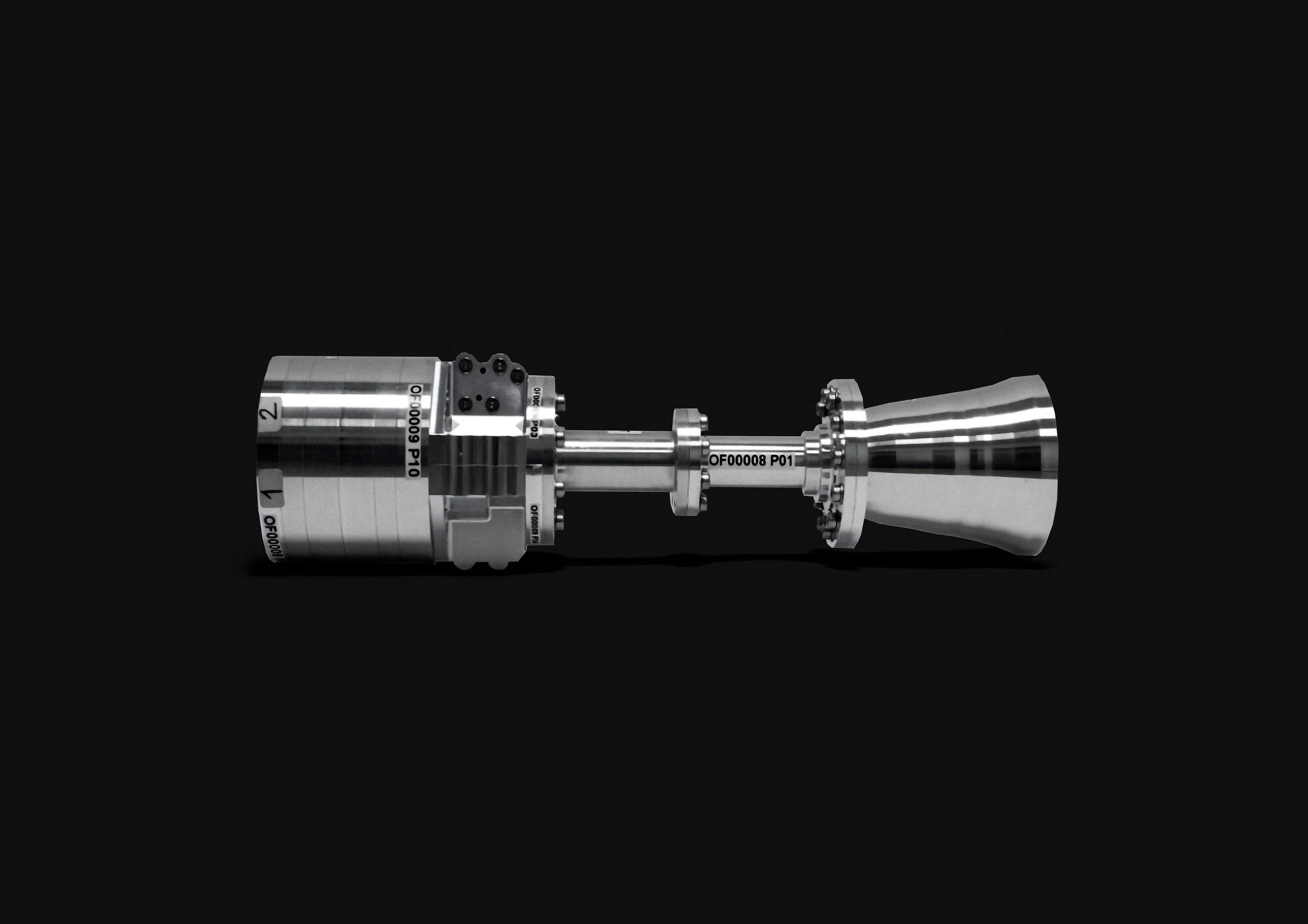

K-KA BAND FEED
The EOSOL FEED-RAD-K-KA-DLP is designed to feed a refector at K and Ka band mainly for Earth Observation Radiometry applications. It provides very low spill over and therefore the feed offers low sidelobes level. This feed could be also suitable for telecom applications since it can be customized adjusting the frequency bands and parameters to the desired ones.
Frequency band: K-Ka band (Dual)
Polarization: Circular
Dimensions: 271 x 65⌀ mm
Applications: Radiometry, Aerospace, Ground Stations
TRL: 7

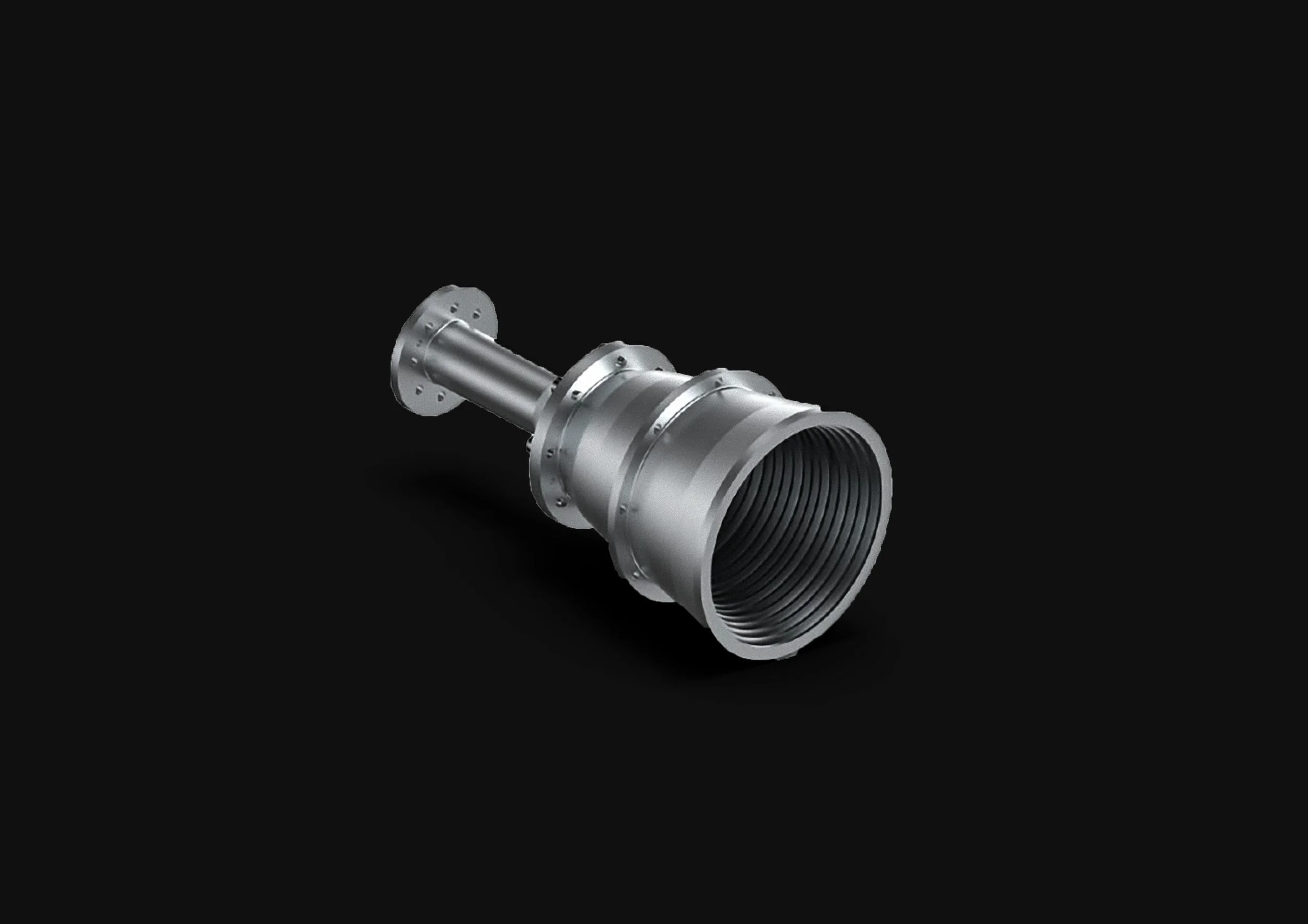

K-KA CORRUGATED FEED HORN
The EOSOL CH-ARC-K-KA-D21 is a K-Ka band corrugated feed horn designed to feed a reflector and to provide high performance communications due to its high effiency and low crosspolar level. Furthermore, it achieves low sidelobes level despite the high efficiency presented.
Frequency band: K-Ka band
Polarization: Circular
Dimensions: 147 x 77 x 77 mm
Applications: SATCOM, Aerospace, Military, Commercial
TRL: 8
K-KA BAND FEED HORN
The EOSOL FEED-RAD-K-KA-DLP is designed to feed a refector at K and Ka band mainly for Earth Observation Radiometry applications. It provides very low spill over and therefore the feed offers low sidelobes level. This feed could be also suitable for telecom applications since it can be customized adjusting the frequency bands and parameters to the desired ones.
Frequency band: K-Ka band
Polarization: Circular
Dimensions: 271 x 65⌀ mm
Applications: Radiometry, Aerospace, Ground Stations
TRL: 8

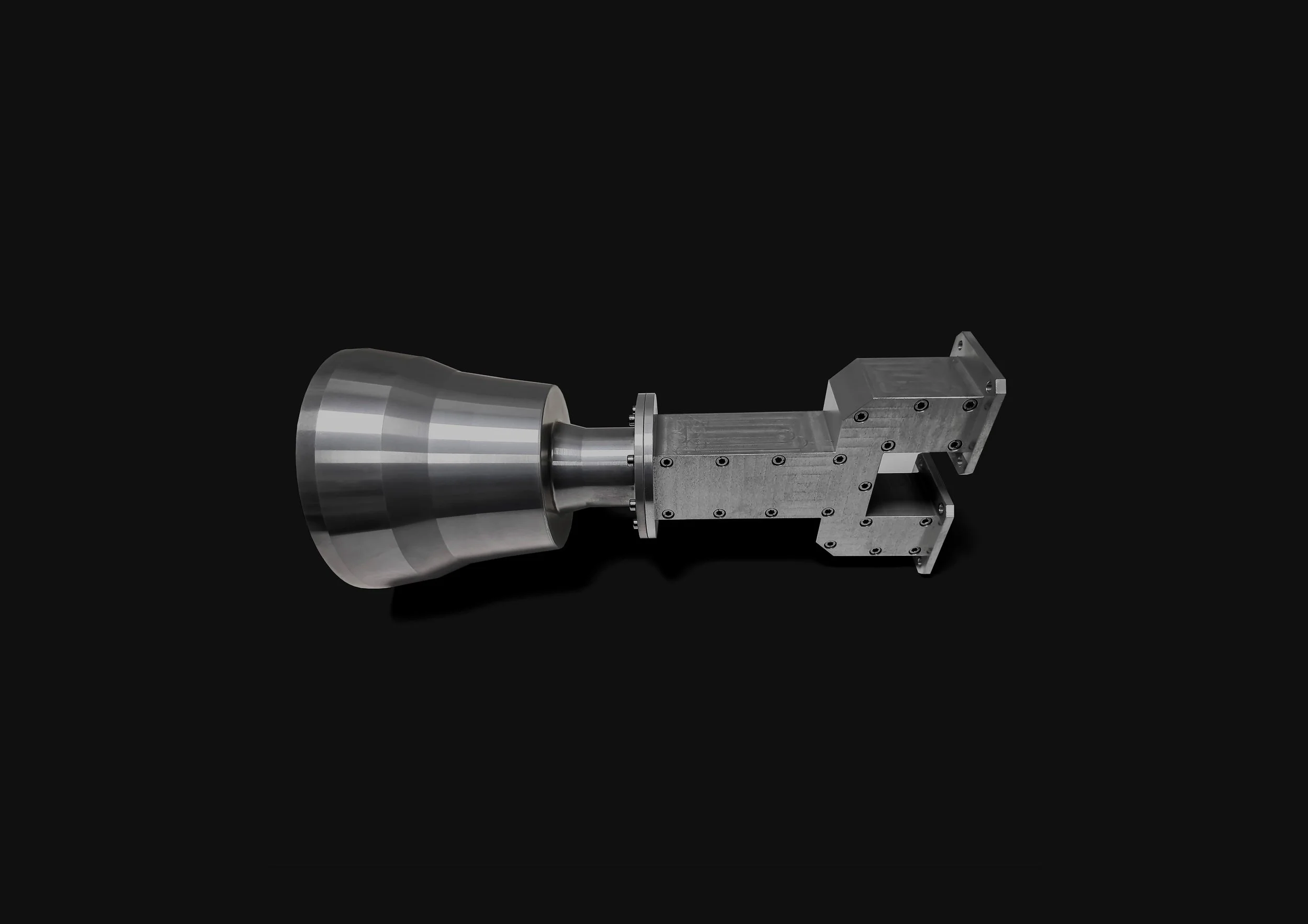

X BAND FEED
The EOSOL FEED-COMS-X-TX-RX-SCP is designed to feed an offset reflector at X band mainly for telecom applications. It provides low spillover and therefore the feed offers low sidelobes level. The design can be adjusted to fit in other reflector configurations. Furthermore, reflector antenna simulation results can be included.
Frequency band: X band
Polarization: Dual Circular
Dimensions: 281x118x118 mm
Applications: Fixed SATCOM Terminals, Flyaway SATCOM Terminals
TRL: 8

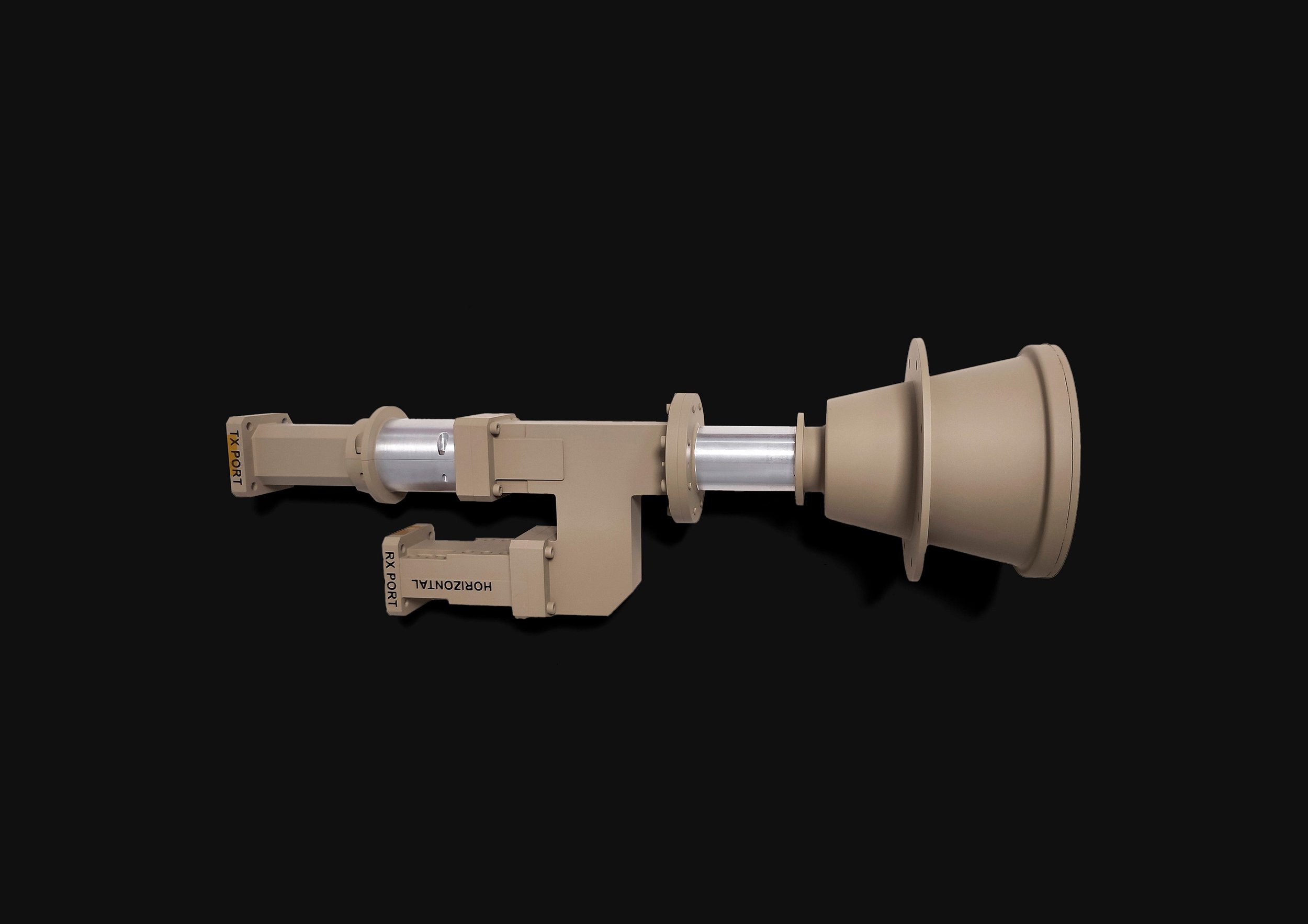

KU BAND FEED
The EOSOL FEED-COMS-KU-TX-RX-SLP is designed to feed an offset reflector at Ku band mainly for telecom applications. It provides low spillover and therefore the feed offers low sidelobes level. The design can be adjusted to fit in other reflector configurations. Furthermore, reflector antenna simulation results can be included.
Frequency band: Ku band
Polarization: Single Linear
Dimensions: 375x129x120 mm
Applications: Fixed SATCOM Terminals, Flyaway SATCOM Terminals
TRL: 9

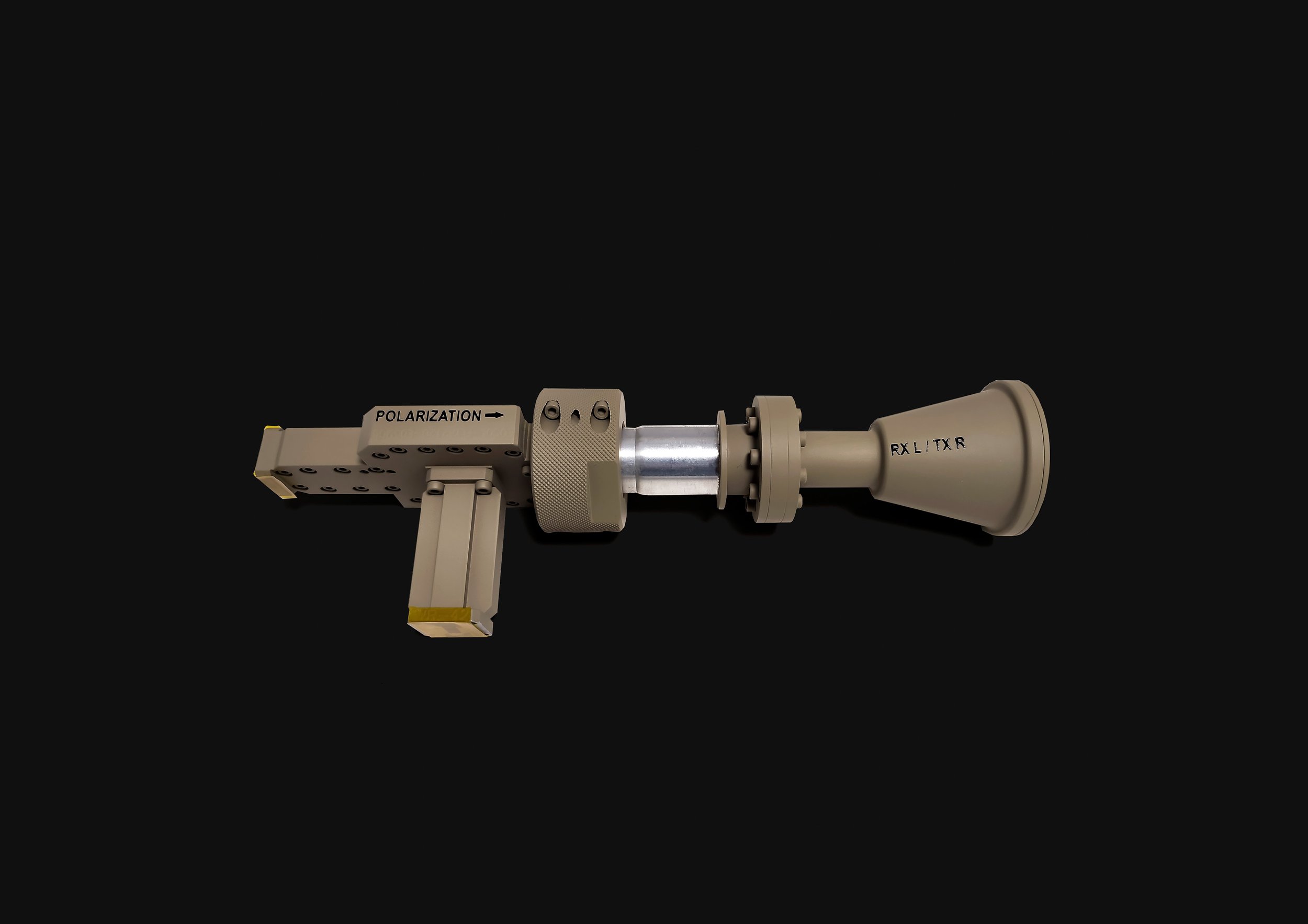

KA BAND FEED
The FEED-COMS-KA-TX-RX-SCP is designed to feed an offset reflector at Ka band mainly for telecom applications. It provides low spillover and therefore the feed offers low sidelobes level. The design can be adjusted to fit in other reflector configurations. Furthermore, reflector antenna simulation results can be included.
Frequency band: Ka band
Polarization: Single Circular
Dimensions: 261x88x56 mm
Applications: Fixed SATCOM Terminals, Flyaway SATCOM Terminals
TRL: 9

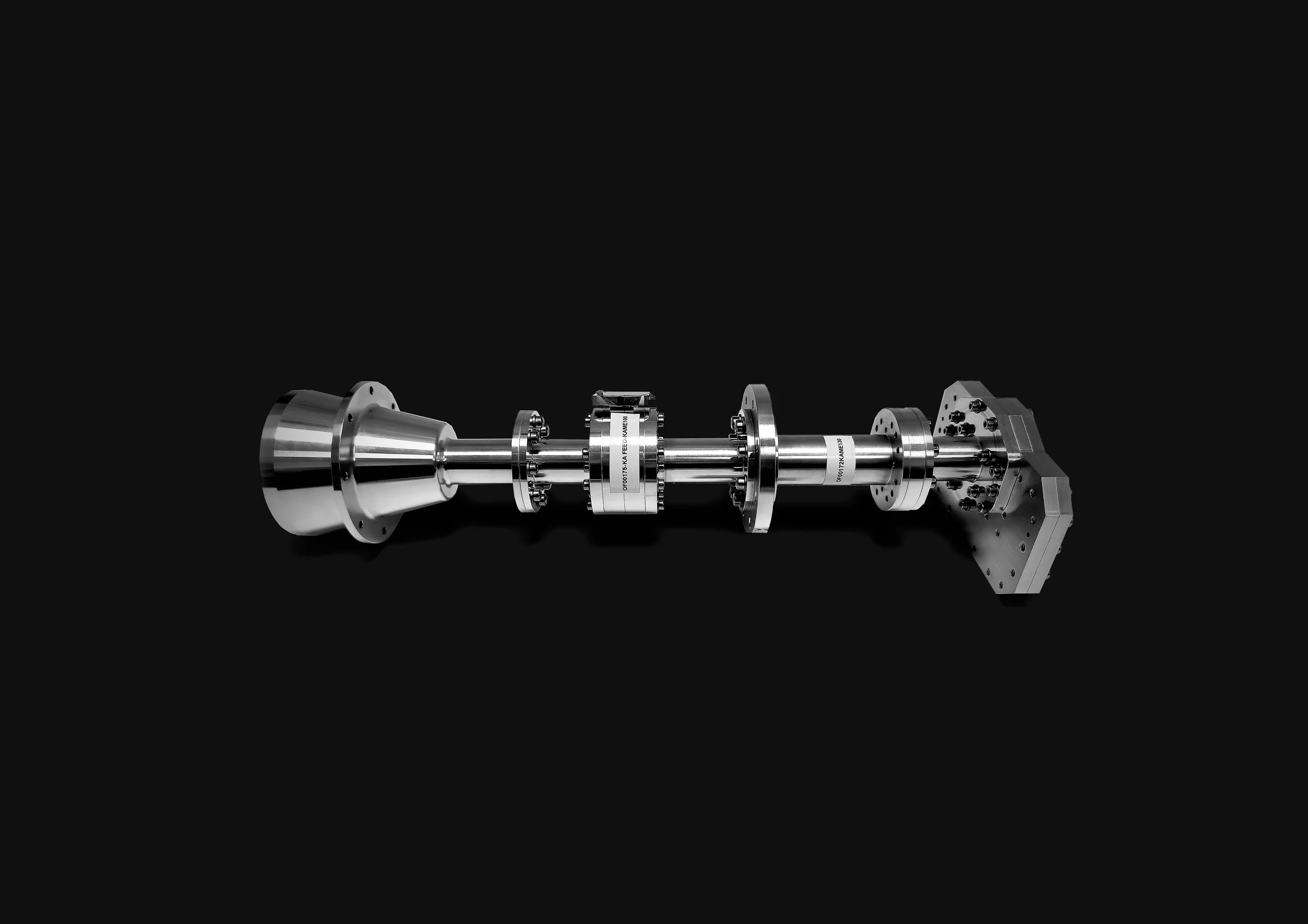

KA BAND TX-RX CIRCULAR POLARIZATION WITH TM01 FEED
The FEED-COMS-KA-TX-RX-DCP-TM01 is designed to feed a reflector antenna at Ka band mainly for Ground Station Antenas (GCS), working with two ports (Tx and Rx). The feed includes a novel and very compact TM01 mode extractor at Ka-band based on ESA patent (9929471), for adding tracking capability.
Frequency band: Ka band
Polarization: Circular
Dimensions: 370 x 81⌀ mm
Applications: Gound Control Stations, SATCOM Terminals, Tactical Communications
TRL: 7

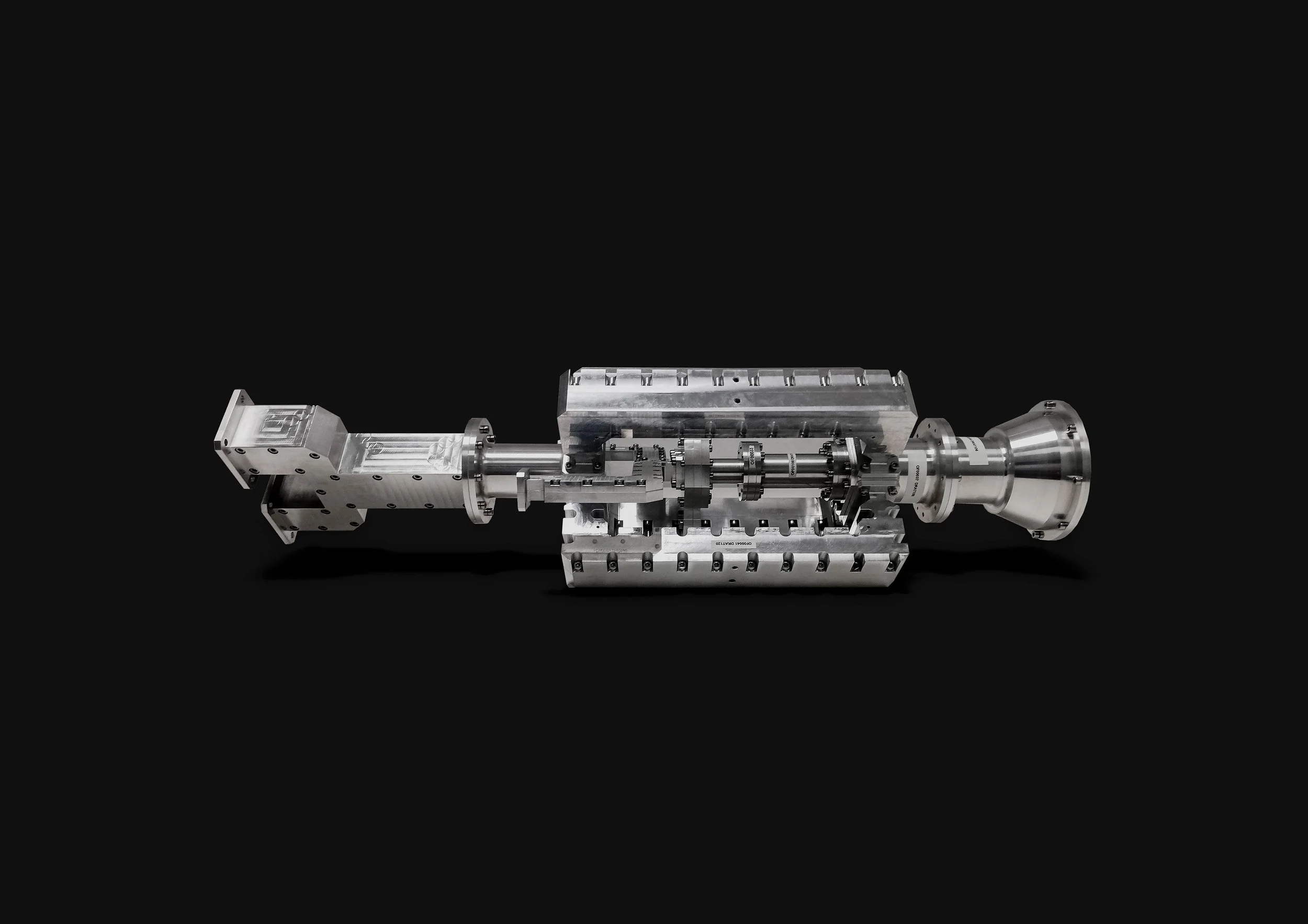

X-KA DUAL BAND FEED
The FEED-COMS-X-KA-TX-RX-DCP is designed to feed an offset reflector antenna at dual X and Ka band mainly for SATCOM terminals, working with two ports (Tx and Rx). The feed operates over complete civil and military frequency bands with full circular polarization. 8 output ports, allowing a complete dual operation without the need for manual change of polarizations
Frequency band: X and Ka band
Polarization: Full Dual Circular
Dimensions: 525 mm x 158 mm
Applications: Gound Control Stations, SATCOM Terminals
TRL: 7
